FEATURES :-

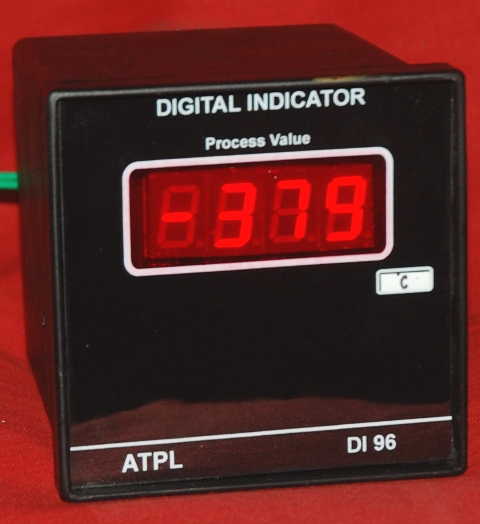

DIGITAL CONTROLLER
Input : Available in RTD Pt-100, T/C (J,K,R,S,T,E,B) mVAC, VDC, mADC, AC Amp, ACV,
Resistance, Pulse, Frequency etc.
Range : 3 7 Segment Red/Green/Umber LED display
No. of Set point : One/ Two
Output : 1 No+1 NC Relay C/O contact for each set point.
Rating : @5 Amp at 230 VAC
Set point : Multi Turn trim pots adjustment provided on front.
Supply : 110/230 VAC 10%, 50 Hz
Size : 48 x 96 / 96 x 96 / 72 x 72 mm
Optional :
24 VDC Transmitter Power Supply
04-20 mA DC Retransmission Output
Two Colour/Three Colour 7 Seg. LED Display (Unique Feature)
