DIGITAL INDICATOR

Designed by ATPL

AUTOTEC

Manufacturers of Process Control Instruments

     FEATURES :-

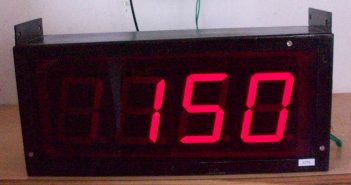

BIG SIZE INDICATOR

·  Input               :  RTD Pt-100, T/C (J,K,R,S,T,E,B), VDC, mA DC, AC Amp, ACV, (Pl. specify any one)
·  Display           :  7 segment Red LED display
·  No. & Digit      :  3½ Digit & 4½ Digit (Please specify any one)
·  Height of digit  :  2”, 3”, 4”, 6” & 8” height (Please Specify any one)
·  Calibration       : Zero & span calibration by trim pots.
·  ACJC              : Provided (For T/C Input only)
·  Accuracy        :  ±0.25”,% of FS ± 1 Count (For T/C & RTD I/P’s)
         ±0.10% of FS ± 1 Count  (For mA & voltage I/P’s)
·  Mains Supply  :  110 or 230 VAC, 50  Hz  (factory set for any one)
·  Mounting        :   Wall Mounted / Hanging Arrangement
·  Environmental Enclosure : IP 20 Protection
·  Terminals        :  Barrier terminal (suitable  for up to 2.5 sq.mm cable)
