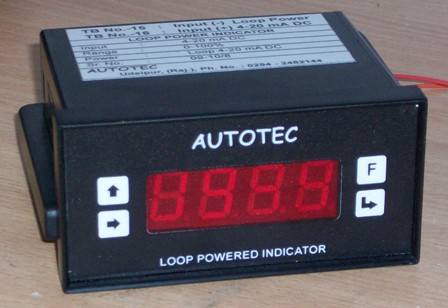

DIGITAL INDICATOR
Designed by ATPL
AUTOTEC
Manufacturers of Process Control Instruments

     FEATURES :-
LOOP POWERED INDICAOTOR
   Input        : 4 - 20 mA DC
   Range      : Programmable through front membrane keypad from -999 to 9999
   Display    : 4 digit, 0.3, 7 seg. Red LED for 48 x 96 mm
   Accuracy : Better than + 0.1% of F. S.
   Power Supply : Self powered from input
   Drop Voltage  : Approx. 3.6 V DC
   Temperature Drift  : Less than 0.01% of F. S. per C change
   Response Time  : Less than 100 msec
   Operating Temperature0 to 55 C
   Humidity    :  5 to 95% Non condensing
   Mounting   : Panel Mounting
   Enclosure  : ABS Plastic
   Size          : 48 X96 / 96 X96 (H) x 96 (W) in mm
