Designed by ATPL

AUTOTEC

Manufacturers of Process Control Instruments

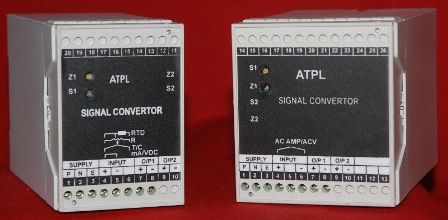

SIGNAL ISOLATOR

· Type : 4 wire
· Input : Available in RTD Pt-100, T/C (J,K,R,S,T,E,B) mVAC, VDC, mADC, AC
Amp, ACV, Resistance, Pulse, Frequency Input.
· Output : 4-20 mA DC, 0-20 mA DC, 0-5 V, 0-10 V, Frequency
· No. of O/P : Single/Dual,Triple/Quad on request
· Isolation : Optical & Galvanic Isolation of 2 KV is provided
· Calibration : Zero & span calibration by two individual trim pots
· Supply : 110/230 VAC ±10%, 50 Hz / 24 VDC
· Mounting : Din Rail

FEATURES :-
