FEATURES :-

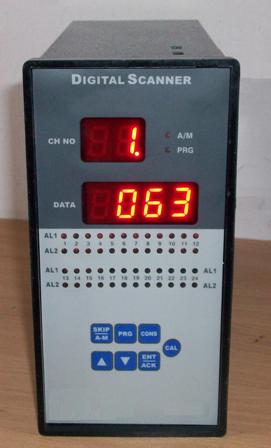

DIGITAL SCANNER

· Channel : 8/16/24/32 Channel Input available in T/C (J,K,R,S,T,E,B), RTD-pT-100
· Display : 2 Digit for channel number, 4 Digit for process value , 7 Segment LED 0.56” height
· Range : As per the standard of input Programmable
· Calibration : Digital calibration through front Key board
· Scan Time : Programmable 1 to 59 sec. through Key Pad
· Accuracy : ±.25% of FS ±1 Digit
· Relay : Two common relay output for all channel
· Alarm : Status through front LED
· Supply : 110/230 VAC ±10%, 50 Hz
· Optional : Individual setting with common relay output.
· RS 485 Modbus Communication
· Retransmission Output 4-20 mA DC of Maximum Input.
